High Performance
Variables, expressions and equations that have been programmed can be exported to well-known engineering numeric programs / Import of SPICE Netlist is also supported
SimOne provides an effective circuit simulation environment using original algorithms based on state-of-the-art and classical numerical methodology
Component Library
Schematic editor
Import/Export
Spice NetList
Spice NetList
Simulation control
Graph Viewer/
postprocessor
postprocessor
Export to
matlab, Maple, excel
matlab, Maple, excel
Circuit Equation
dc analysis
ac analysis
Transient analysis
periodic steady-state analysis
stability anlysis
Entrust Your Circuit Simulation to Professional Software
-
SPEED
- Up to 10x faster than classic SPICE software
- Reduces the time required for simulation of large-size circuits
- Simultaneous carries out several analysis operations without the loss of operation speed
-
QUALITY
- Enhances accuracy during analysis of transient processes
- Checks device serviceability even at the schematic design stage - unique type of analysis with the SimOne
- Includes all classic types of analysis of electric circuits
-
Cost-Efficiency
- Reduces costs for prototyping designed electronic devices
- Reduces the costs for full-scale simulation and tests
- Reduces labor costs
-
Solutions
- SPICE simulation of large-size circuits
- Application of contemporary numerical methods for a higher order of accuracy
- Efficient use of PC memory making it possible to simulate large-size circuits
- Optimizing component parameters of the schematic electrical diagram
-
Quality
- Operating point calculation
- DC Sweep / DC Sensitivity
- AС Point / AC Sweep
- Transient Process Analysis (Transient Analysis)
- Periodic Steady-State Analysis (PSS Analysis)
- Circuit Stability Analysis (Stability Analysis)
- Temperature Analysis (.TEMP)
- Circuit Parametric Analysis (.PARAM)
- Measurements Sensitivity Analysis
- Parametric Optimizer
- Statistical Analysis (Monte Carlo/Worst Case)
-
Cost-Efficiency
- Provides new features such as Periodic Steady-State Analysis and Stability Analysis of circuits enabling one to check the serviceability of the device at the schematic design stage
- Library support of more than 30,000 SPICE-primitives and SPICE-models of real electronic components
- Enhancing operating efficiency for design engineers
Compatibility
PSPICE, LTSPICE, NGSPICE
Touchstone
Touchstone
Matlab, Waterloo MapleMicrosoft Excel
Proved to be faster

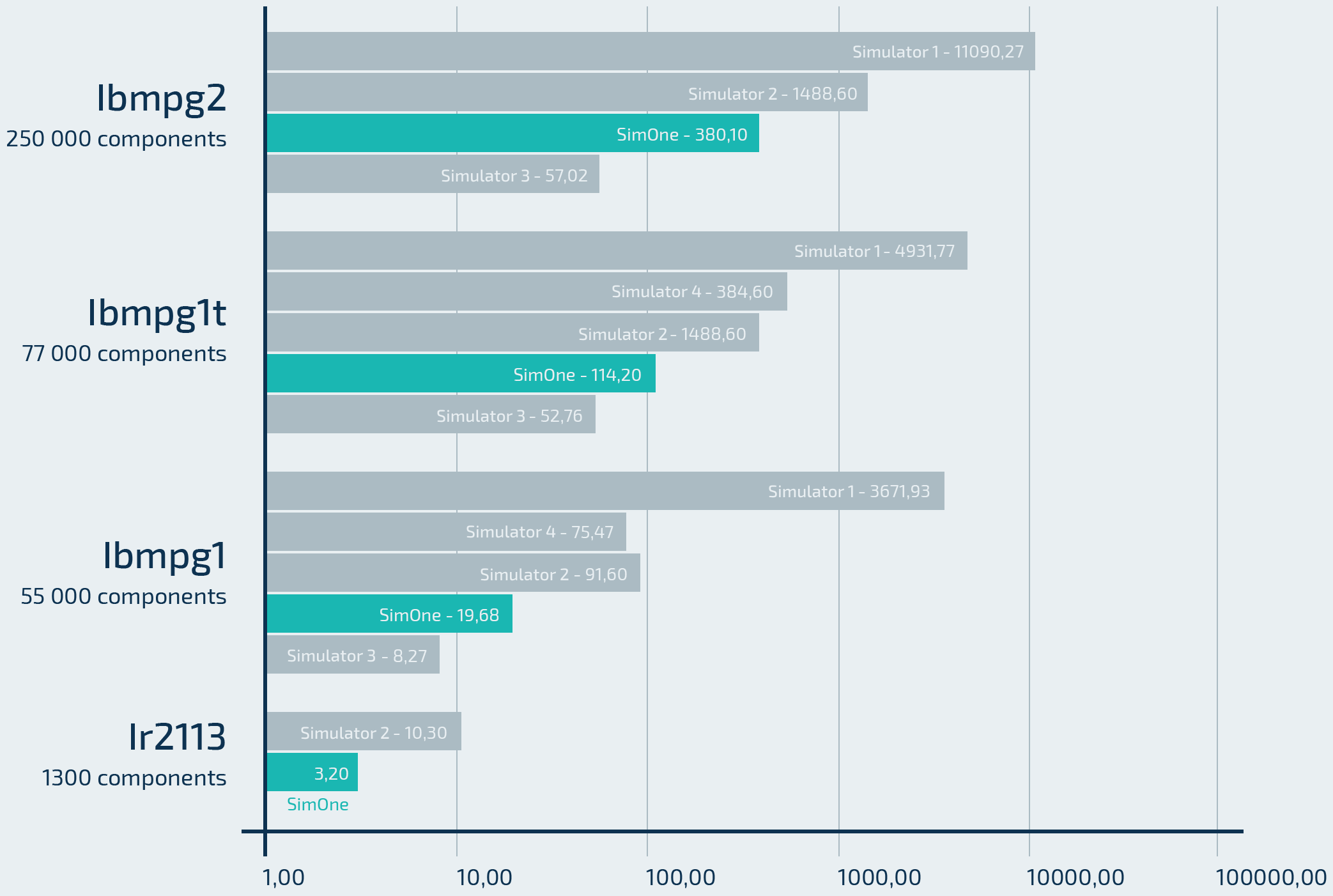

The diagram shows calculation time in seconds.
The selected test circuits are included into the IBM Power Grid Benchmarks set
from the article “Power Grid Analysis Benchmarks ASP-DAC 2008”.
Link for downloading the circuits: http://dropzone.tamu.edu/~pli/PGBench/
Tests were performed using IBM PC Intel Core i3 CPU 550 @ 3.20GHz RAM 16Gb Win7x64
The selected test circuits are included into the IBM Power Grid Benchmarks set
from the article “Power Grid Analysis Benchmarks ASP-DAC 2008”.
Link for downloading the circuits: http://dropzone.tamu.edu/~pli/PGBench/
Tests were performed using IBM PC Intel Core i3 CPU 550 @ 3.20GHz RAM 16Gb Win7x64
SimOne
Includes one year technical support and updates
-
professional$2990
